Multilec Engineering can design and manufacture hydraulic power units to meet customers’ requirements and we can also compliment the mechanical with an electrical component. We are able to complete turn key package with no compromises.

HPU Supply

Click image to view gallery.

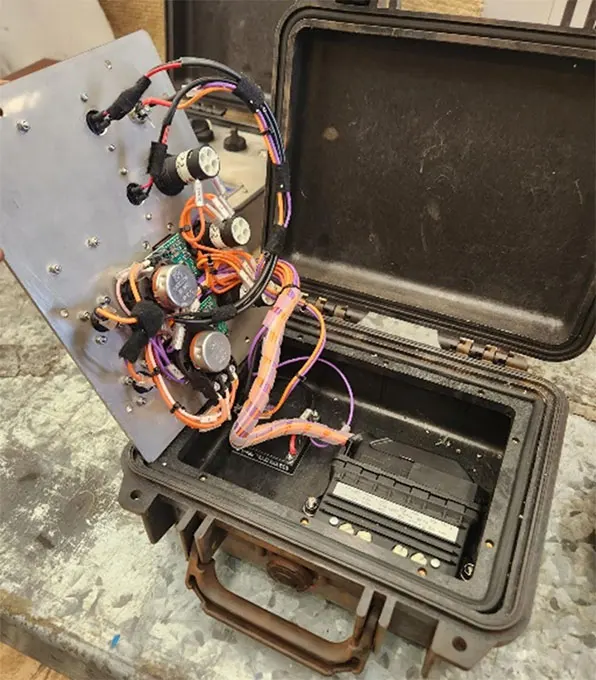

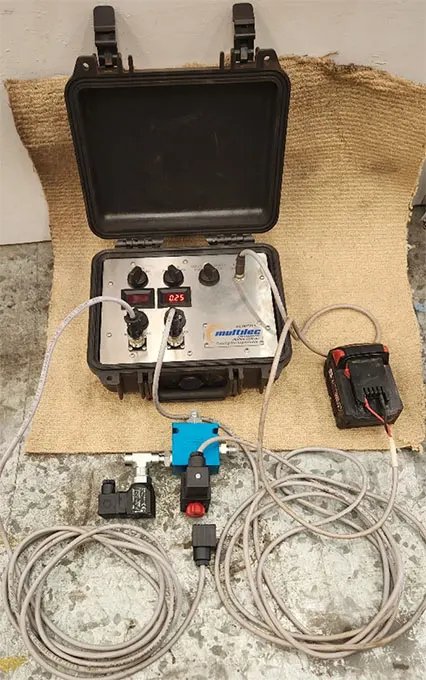

Multilec Engineering has designed and developed custom solutions for testing, diagnostics and analysis of hydraulic controls.

Portable equipment is used to test control valves with the following operational parameters:

  • Pelican case for storage and transports
  • 240vac input or multil voltage dc inputs (drill battery, car battery, power supply)
  • Voltmeter to read voltage to the coil
  • Amp meter to read the current draw of the coil
  • Range of leads can be manufactured as per the clients requirements
  • Data logging to record all values of the test
  • Internal Amplifier card to drive all makes and types of proportional coils
  • Millivolt, volt, amps and milliamps input and output control
Electro Hydraulic Test Equipment

Click image to view gallery.

The design and development of the test equipment is an ongoing project with feedback from technicians and end users to effectively diagnose faults onsite.

Onsite systems have become more heavily electrical interlocked and the setup of electro hydraulic controls can be more problematic. Being able to load parameters into controllers and simulate the operation without the interlocks impediment is crucial for testing and setup for the onsite technicians.

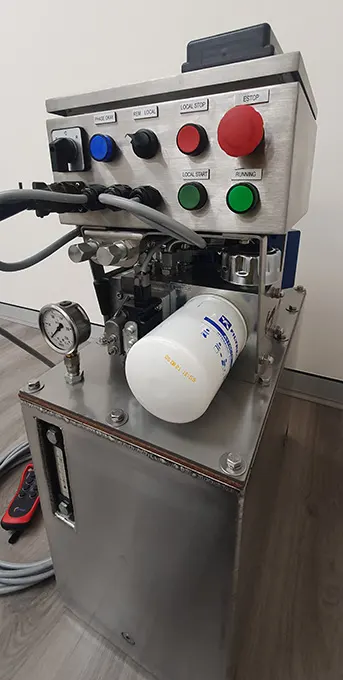

Multilec Engineering has been involved in the line boring Industry and have manufactured HPU control panels for a number of hydraulic companies. From this experience we have developed in conjunction with Danfoss an offering to the market that is fit for purpose.

  • Stainless Steel tank with 70 litres capacity with 68 Grade oil supplied
  • Stainless Steel Control Panel Enclosure
  • Radio Remote and Wired Pendant control with backup local manual control
  • Supply lead with 32Amp or 20Amp 4 pin plug. no neutral required.
  • Supply requirements 3Phase 415VAC 50Hz
  • Motor/Phase Rotation Protection relay, Correct Indication LED and Changeover Switch
  • Extra Low Voltage 24VDC Control Circuit
  • 5.5kW Electric Motor with DOL Starting
  • Horse Power Control/Constant Torque output pump and Danfoss Valve Assembly
  • Hydraulic Output Power max 40Lpm max 180Bar
  • Line Pressure Gauge
  • External return filter housing for easy of servicing
  • 3/4" JIC Male Bulk Head Connection points for A & B output ports
Line Boring

Click image to view gallery.

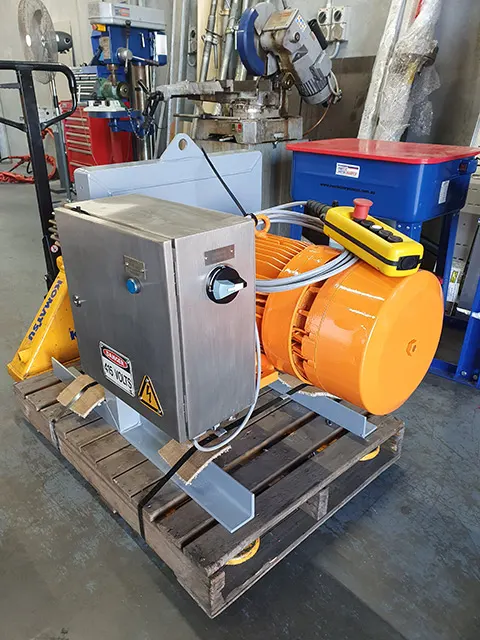

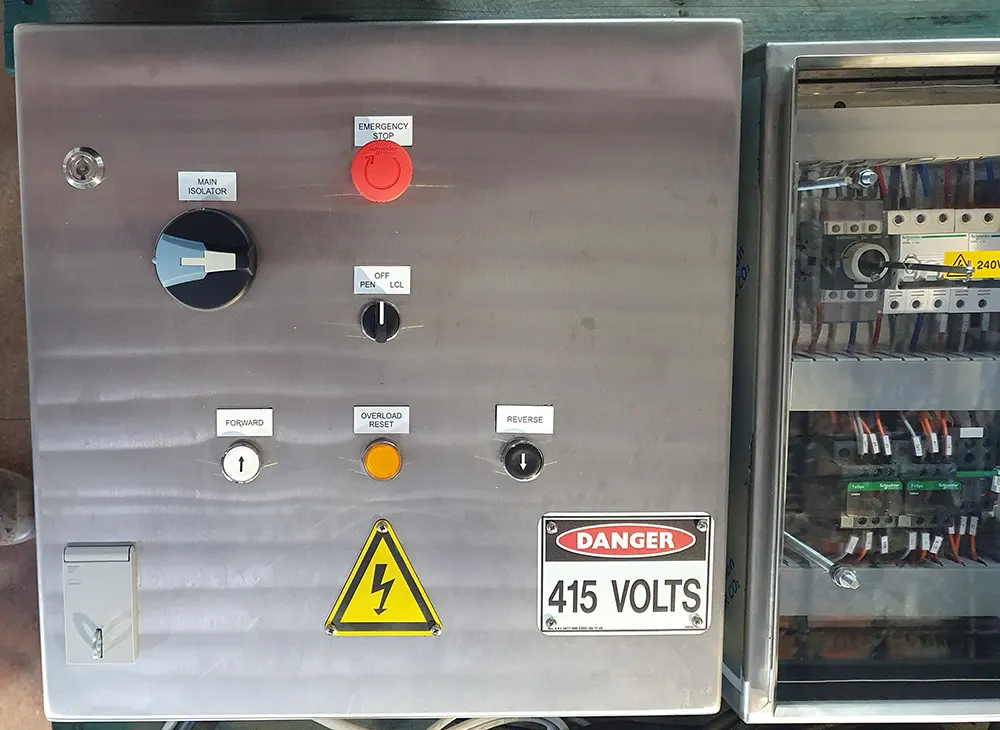

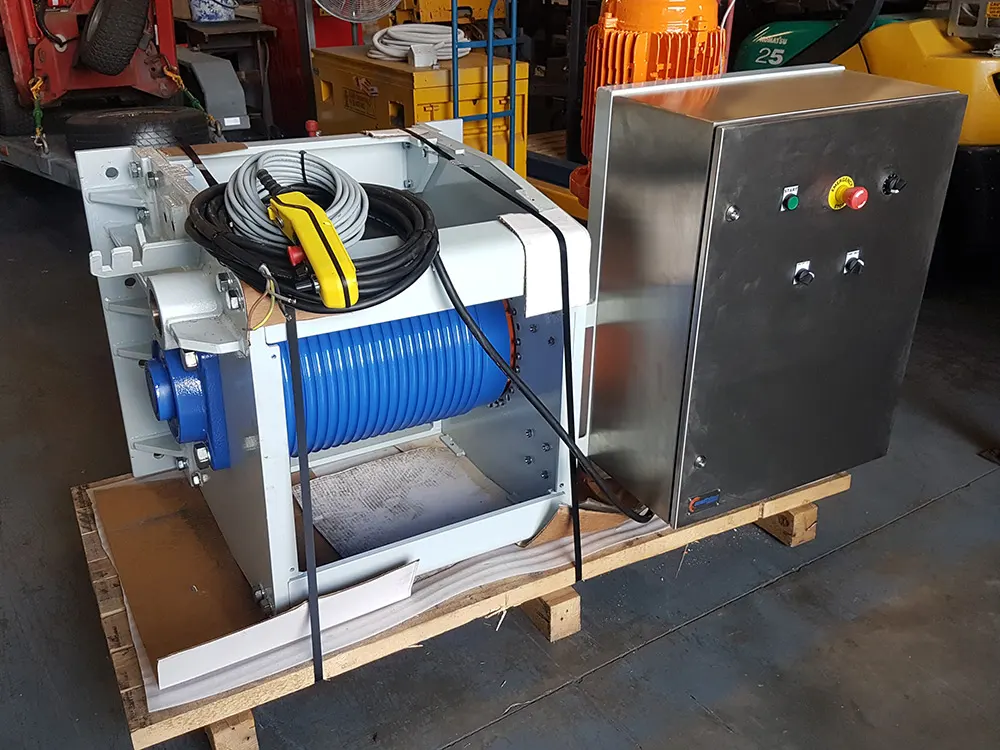

Electric Drive or Electric over hydraulic controlled for Belt winching or hauling with Load holding, torque, pressure and torque control requirements.

These type of controls can be completed and via a number of build variations

  • Phase rotation protection and change over switches
  • Stainless steel or mild steel or complete custom builds
  • Wired pendant controllers
  • Radio Remote controller with additional batteries and storage enclosures
  • Direct on line DOL motor starters
  • Soft starter motor starters
  • VVVF/Variable speed drives for electric drive
  • Hydraulic drive with proportional hydraulic flow, via Bosch Rexroth, Dension, Parker or Danfoss Plus one control cards.
Winches Winders

Click image to view gallery.
